NCERT Exemplar for Class 12, Physics Chapter 3

NCERT Exemplar Class 12 Physics Chapter 3: Current Electricity. NCERT Exemplar Solutions for Class 12 Physics Chapter 3 Current Electricity prepare students for their Class 12 exams thoroughly.

Physics problems and solutions for the Class 12 pdf are provided here which are similar to the questions being asked in the previous year’s board.

Contents

1 NCERT Exemplar Class 12 Physics Chapter 3: Current Electricity
2 Answers to Multiple Choice Questions
- 2.1 NCERT Exemplar Class 12 Physics Solutions
- 2.2 Other Study Material

NCERT Exemplar Class 12 Physics Chapter 3: Current Electricity

Class 12: Physics Chapter 3 solutions. Complete Class 12 Physics Chapter 3 Notes.

Multiple Choice Questions (MCQ I)

Consider a current carrying wire (current I) in the shape of a circle. Note that as the current progresses along the wire, the direction of j (current density) changes in an exact manner, while the current I remain unaffected. The agent that is essentially responsible for is
- (a) source of emf.
- (b) electric field produced by charges accumulated on the surface of wire.
- (c) the charges just behind a given segment of wire which push them just the right way by repulsion.
- (d) the charges ahead.
Two batteries of emf ε₁ and ε₂ ( ε₂ > ε₁ ) and internal resistances r₁ and r₂ respectively are connected in parallel as shown in Fig 3.1.
- (a) The equivalent emf ε_eq of the two cells is between ε₁ and ε₂ , i.e. ε₁ < ε_eq < ε₂ .
- (b) The equivalent emf ε_eq is smaller than ε₁ .
- (c) The ε_eq is given by ε_eq = ε₁ + ε₂ always.
- (d) ε_eq is independent of internal resistances r₁ and r₂ .
A resistance R is to be measured using a meter bridge. Student chooses the standard resistance S to be 100Ω. He finds the null point at l₁ = 2.9 cm. He is told to attempt to improve the accuracy. Which of the following is a useful way?
- (a) He should measure l₁ more accurately.
- (b) He should change S to 1000Ω and repeat the experiment.
- (c) He should change S to 3Ω and repeat the experiment.
- (d) He should give up hope of a more accurate measurement with a meter bridge.
Two cells of emf’s approximately 5V and 10V are to be accurately compared using a potentiometer of length 400cm.
- (a) The battery that runs the potentiometer should have voltage of 8V.
- (b) The battery of potentiometer can have a voltage of 15V and R adjusted so that the potential drop across the wire slightly exceeds 10V.
- (c) The first portion of 50 cm of wire itself should have a potential drop of 10V.
- (d) Potentiometer is usually used for comparing resistances and not voltages.
A metal rod of length 10 cm and a rectangular cross-section of 1cm * 1 / 2 is connected to a battery across opposite faces. The resistance will be
- (a) maximum when the battery is connected across 1 cm * 1 / 2 cm faces.
- (b) maximum when the battery is connected across 10 cm * 1 cm faces.
- (c) maximum when the battery is connected across 10 cm * 1 / 2 cm faces.
- (d) same irrespective of the three faces.
Which of the following characteristics of electrons determines the current in a conductor?
- (a) Drift velocity alone.
- (b) Thermal velocity alone.
- (c) Both drift velocity and thermal velocity.
- (d) Neither drift nor thermal velocity.

Multiple Choice Questions (MCQ II)

Kirchhoff ’s junction rule is a reflection of
- (a) conservation of current density vector.
- (b) conservation of charge.
- (c) the fact that the momentum with which a charged particle approaches a junction is unchanged (as a vector) as the charged particle leaves the junction.
- (d) the fact that there is no accumulation of charges at a junction.
Temperature dependence of resistivity ρ (T) of semiconductors, insulators and metals is significantly based on the following factors:
- (a) number of charge carriers can change with temperature T.
- (b) time interval between two successive collisions can depend on T.
- (c) length of material can be a function of T.
- (d) mass of carriers is a function of T.
The measurement of an unknown resistance R is to be carried out using Wheatstones bridge (see Fig. 3.25 of NCERT Book). Two students perform an experiment in two ways. The first students takes R₂ = 10Ω and R₁ = 5Ω. The other student takes R₂ = 1000Ω and R₁ = 500Ω. In the standard arm, both take R₃ = 5Ω.
Both find R = R₂ / R₁ R₃ = 10 Ω within errors.
- (a) The errors of measurement of the two students are the same.
- (b) Errors of measurement do depend on the accuracy with which R₂ and R₁ can be measured.
- (c) If the student uses large values of R₂ and R₁, the currents through the arms will be feeble. This will make determination of null point accurately more difficult.
- (d) Wheatstone bridge is a very accurate instrument and has no errors of measurement.
In a meter bridge the point D is a neutral point (Fig 3.3).
- (a) The meter bridge can have no other neutral point for this set of resistances.
- (b) When the jockey contacts a point on meter wire left of D, current flows to B from the wire.
- (c) When the jockey contacts a point on the meter wire to the right of D, current flows from B to the wire through galvanometer.
- (d) When R is increased, the neutral point shifts to left.

Very Short Answer Type Questions

Is the motion of a charge across junction momentum conserving? Why or why not?
The relaxation time τ is nearly independent of applied E field whereas it changes significantly with temperature T. First fact is (in part) responsible for Ohm’s law whereas the second fact leads to variation of ρ with temperature. Elaborate why?
What are the advantages of the null-point method in a Wheatstone bridge? What additional measurements would be required to calculate R_unknown by any other method?

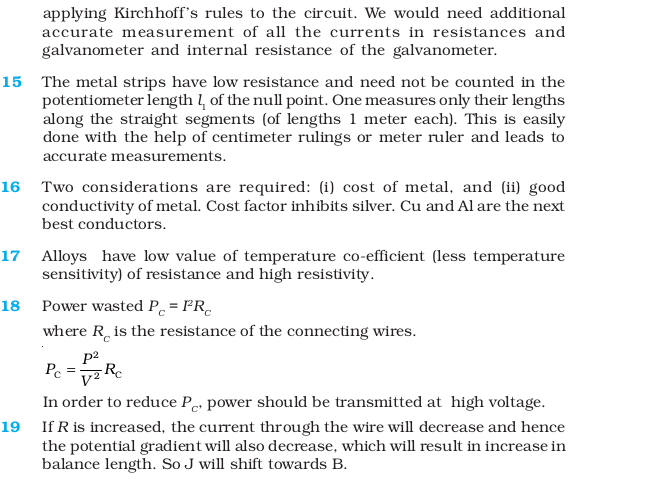

What is the advantage of using thick metallic strips to join wires in a potentiometer?
For wiring in the home, one uses Cu wires or Al wires. What considerations are involved in this?
Why are alloys used for making standard resistance coils?
Power P is to be delivered to a device via transmission cables having resistance R_c. If V is the voltage across R and I the current through it, find the power wasted and how can it be reduced.
3.19 AB is a potentiometer wire (Fig 3.4). If the value of R is increased, in which direction will the balance point J shift?

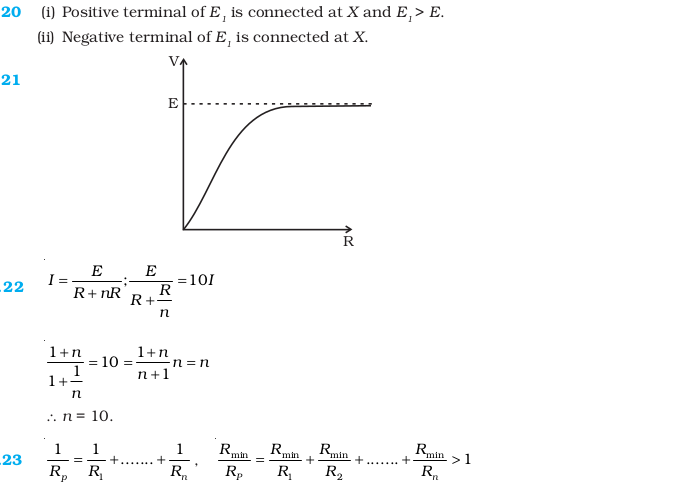

While doing an experiment with potentiometer (Fig 3.5) it was found that the deflection is one sided and (i) the deflection decreased while moving from one end A of the wire to the end B; (ii) the deflection increased. while the jockey was moved towards the end B.
- (i) Which terminal +or –ve of the cell E₁, is connected at X in case (i) and how is E₁ related to E ?
- (ii) Which terminal of the cell E₁ is connected at X in case (ii)?
A cell of emf E and internal resistance r is connected across an external resistance R. Plot a graph showing the variation of P.D. across R, verses R.

Short Answer Type Questions

First a set of n equal resistors of R each are connected in series to a battery of emf E and internal resistance R. A current I is observed to flow. Then the n resistors are connected in parallel to the same battery. It is observed that the current is increased 10 times. What is ‘n’?
Let there be n resistors R₁…………R_n with R_max = max (R₁ ……… R_n) and R_min = min {R₁ ….. R_n}. Show that when they are connected in parallel, the resultant resistance R_p < R_min and when they are connected in series, the resultant resistance R_s > R_max. Interpret the result physically.
The circuit in Fig 3.6 shows two cells connected in opposition to each other. Cell E₁ is of emf 6V and internal resistance 2Ω; the cell E₂ is of emf 4V and internal resistance 8Ω. Find the potential difference between the points A and B.
Two cells of same emf E but internal resistance r₁ and r₂ are connected in series to an external resistor R (Fig 3.7). What should be the value of R so that the potential difference across the terminals of the first cell becomes zero.
Two conductors are made of the same material and have the same length. Conductor A is a solid wire of diameter 1mm. Conductor B is a hollow tube of outer diameter 2mm and inner diameter 1mm. Find the ratio of resistance R_A to R_B.

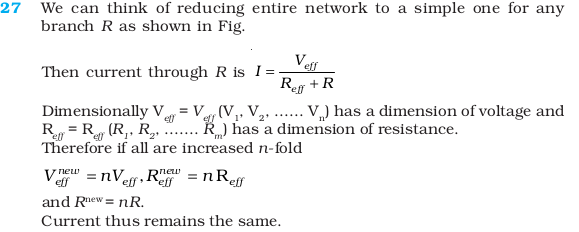

Suppose there is a circuit consisting of only resistances and batteries. Suppose one is to double (or increase it to n-times) all voltages and all resistances. Show that currents are unaltered. Do this for circuit of Example 3.7 in the NCERT Text Book for Class XII.

Long Answer Type Questions

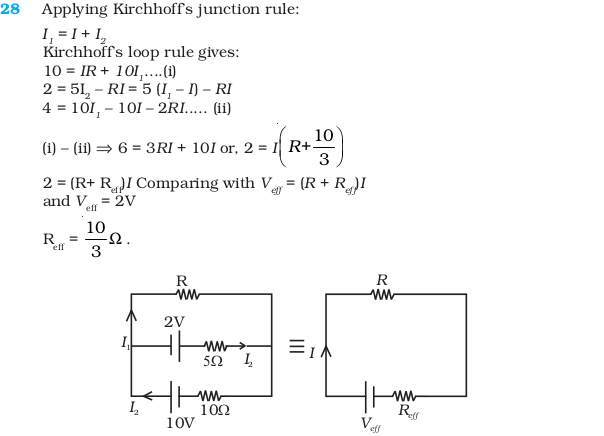

Two cells of voltage 10V and 2V and internal resistances 10Ω and 5Ω respectively, are connected in parallel with the positive end of 10V battery connected to negative pole of 2V battery (Fig 3.8). Find the effective voltage and effective resistance of the combination.
A room has AC run for 5 hours a day at a voltage of 220V. The wiring of the room consists of Cu of 1 mm radius and a length of 10 m. Power consumption per day is 10 commercial units. What fraction of it goes in the joule heating in wires? What would happen if the wiring is made of aluminium of the same dimensions?
[ρ_cu = 1.7 × 10^-8_{Ω m} ,ρ_Al = 2.7 × 10^-8 Ωm]

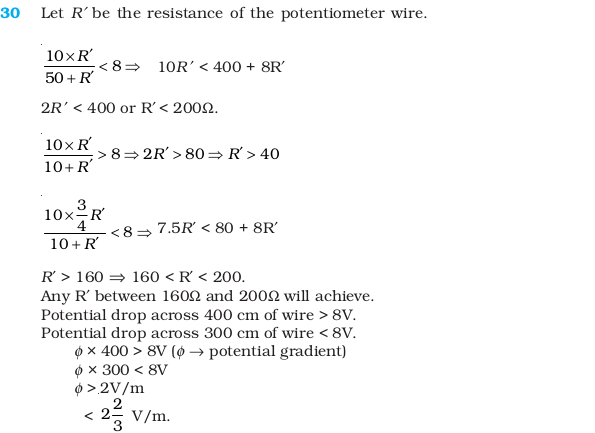

In an experiment with a potentiometer, V B = 10V. R is adjusted to be 50Ω (Fig. 3.9). A student wanting to measure voltage E₁ of a battery (approx. 8V) finds no null point possible. He then diminishes R to 10Ω and is able to locate the null point on the last (4^th) segment of the potentiometer. Find the resistance of the potentiometer wire and potential drop per unit length across the wire in the second case.

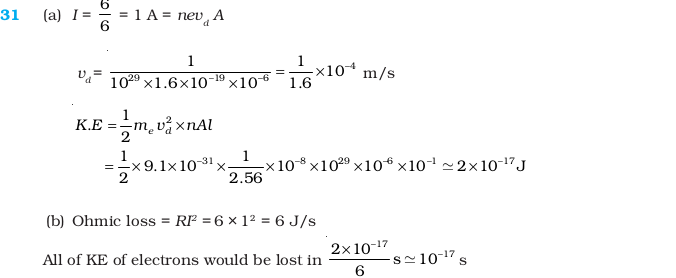

(a) Consider circuit in Fig 3.10. How much energy is absorbed by electrons from the initial state of no current (ignore thermal motion) to the state of drift velocity?
(b) Electrons give up energy at the rate of RI² per second to the thermal energy. What time scale would one associate with energy in problem (a)? n = no of electron/volume = 10²⁹ /m³ , length of circuit = 10 cm, cross-section = A = (1mm)²

Answers to Multiple Choice Questions
